DIN17175 14MoV63 seamless boiler steel tubes are mainly used to manufacture key components such as superheater tubes, reheater tubes, gas guide tubes, and main steam pipes for high-pressure and ultra-high-pressure boilers. These components are subjected to extremely high temperatures and pressures during boiler operation, so the requirements for materials are very high.
DIN17175 14MoV63 carbon steel tubes have various specifications, and the outer diameter and wall thickness can be customized according to customer needs. Generally speaking, the outer diameter range can range from a few millimeters to hundreds of millimeters, and the wall thickness can also be adjusted according to design requirements.
DIN17175 14MoV63 steel tubes can be delivered in a variety of states, including cold-drawn state, ordinary annealing, stress relief annealing, bright annealing, etc., depending on customer needs and order requirements.
DIN17175 14MoV63 boiler steel pipe Chemical Composition and Mechanical Property
| C | P | S | ||||||
| 14MoV63 | 1.7715 | 0.10-0.18 | 0.10-0.35 | 0.40-0.70 | 0.035 | 0.035 | 0.30-0.50 | 0.50-0.70 |
| Tensile strength N/mm2 | Elongation (L=5do) | |||||||
| Less than or equal to 16 | >16 Less than or equal to 40 | >40 Less than or equal to 60 | ||||||
| N/mm2 min | ||||||||
| 14MoV63 | 1.7715 | 460-610 | 320 | 320 | 310 | 20 | 18 | 41 |

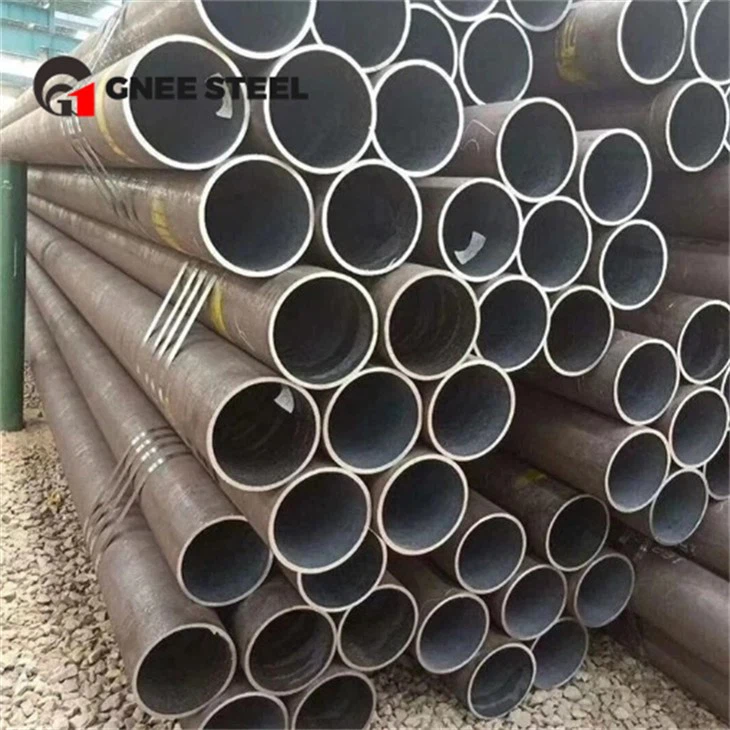

DIN 17175 14MoV63 Alloy Steel Tube
GNEE is a professional steel pipe exporter with 12 production lines and an annual output of 50,000 tons. It has obtained the ISO9001 international quality management system certificate.
A.Generally, our delivery time is within 7-45 days.
